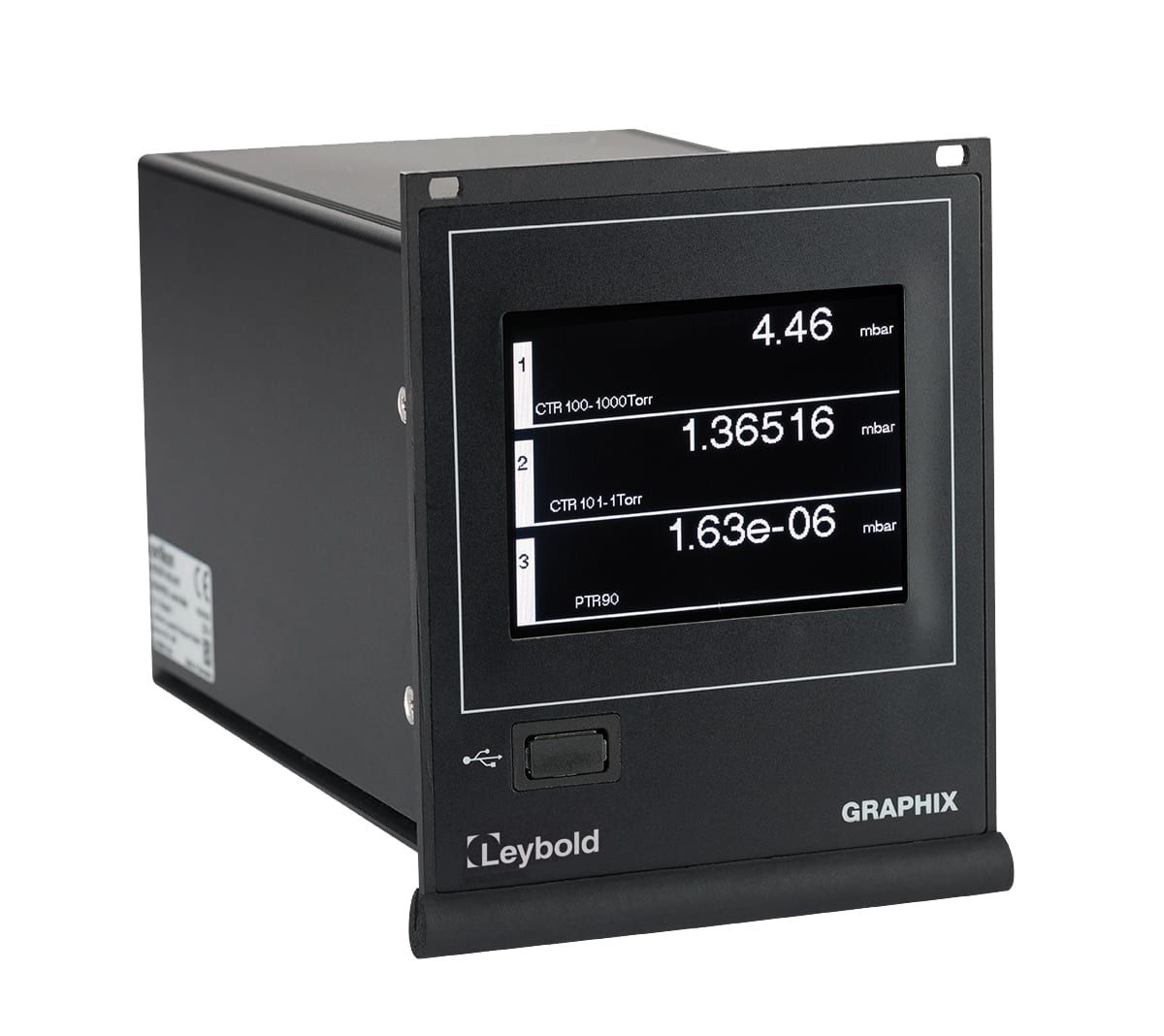

GRAPHIX THREE

Part number: 230682V01
Mains connection: 100 - 240 V, 50/60Hz
Pressure range: 1 x 10-10 mbar - 2000 mbar
incl. EURO / US mains cable
Length: 2 m
$3,101.00 *

Prices plus tax plus shipping costs

GRAPHIX THREE

Universal 1 channel display and operating unit with persistent display of all measurement channels, suited for the active sensors of the THERMOVAC, CERAVAC, linear sensors (DU series), PENNINGVAC and IONIVAC series.



Advantages to the User

■ Display range from 1 x 10-10 to 2000 mbar

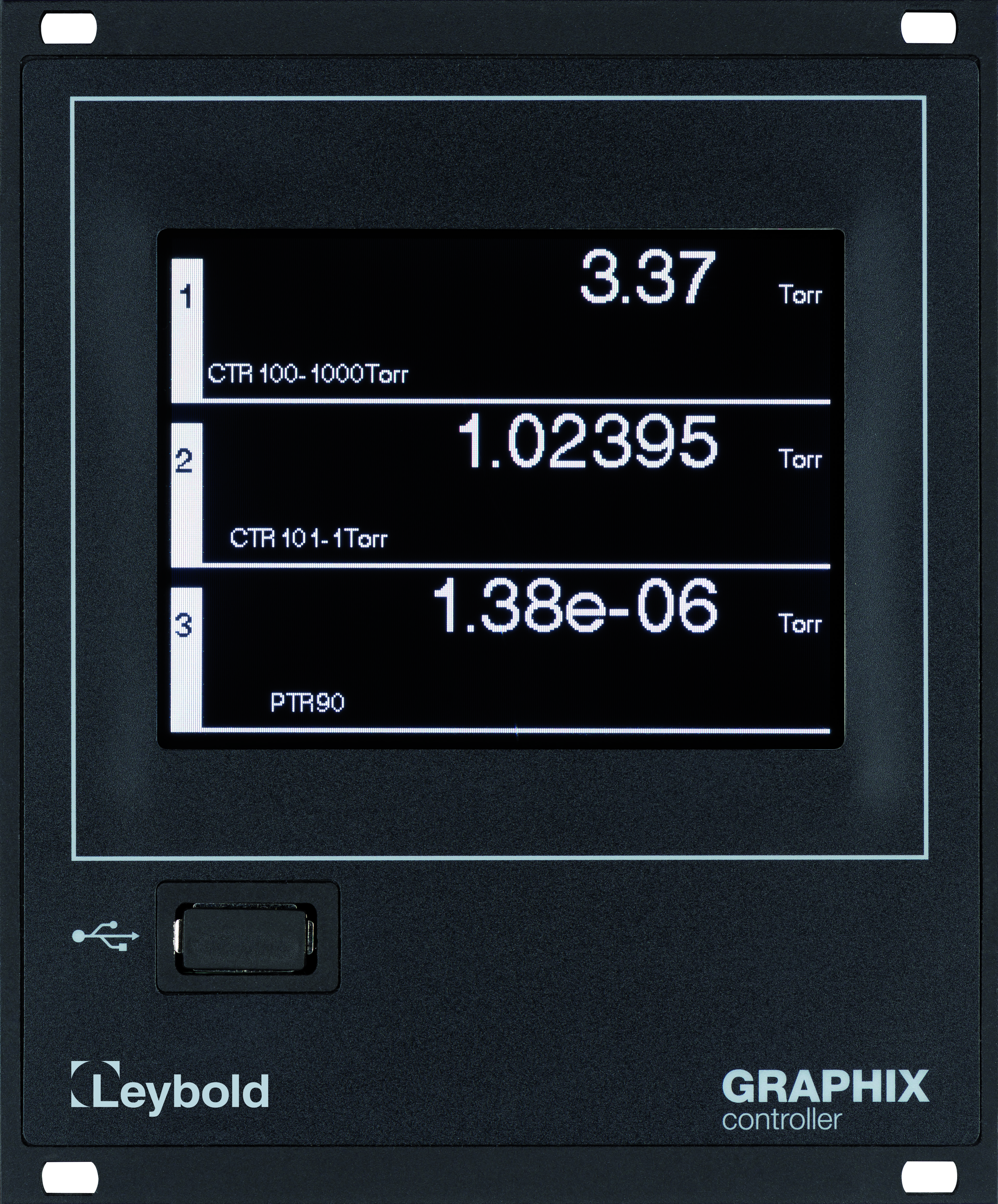

■ 3.5" touch screen display with intuitive menu interface
■ Graphic display of the measurement data
■ Internal and external (front side USB) storing of measurement data and configuration files
 Leak rate indication based on the pressure rise method
 6 adjustable variable hysteresis switching thresholds, floating changeover contacts and visual indication of the switching status in the display area, freely assignable to the individual measurement channels

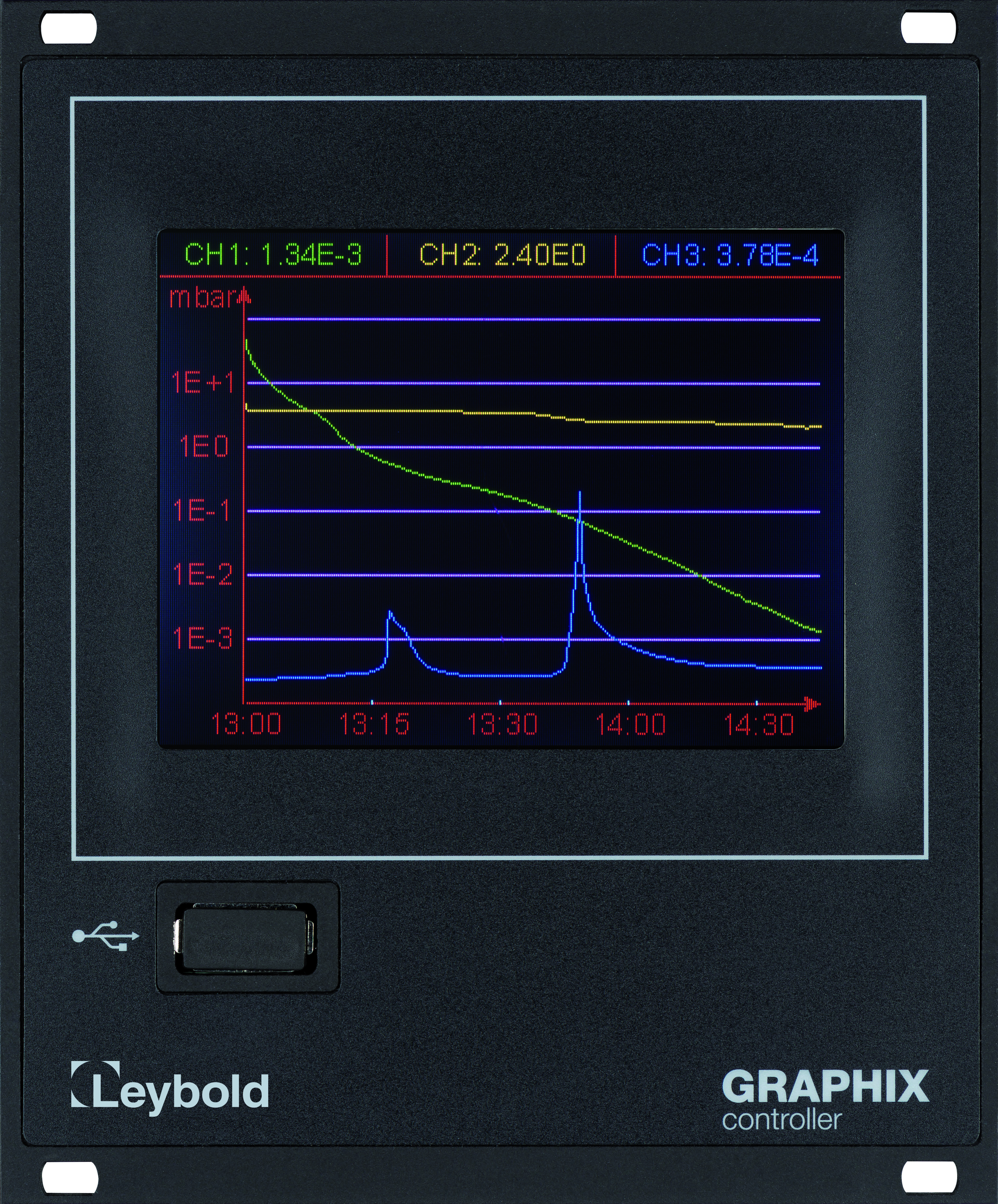

 Different visualisation options (graphs and decimal display with zoom function)
 For connection of all active sensors of other brands
 Degas function for ITR transmitters
 Zero alignment for CTR transmitters
 3 separate chart recorder outputs 0 to 10 V for each measurement channel (analogue output)
 4th programmable chart recorder output optional
 RS 232 C / RS 485 C interface with adjustable baud rate
 Relay output for error indication
 Display selectable between mbar, Torr, micron, Pascal or psi
 Compact installation and benchtop enclosure (1/4 19" 3 HU)
 Software update via USB optional
 Languages: English, German, Chinese, Japanese, French; Italian, Spanish, Korean
 Visualisation through LEYASSIST running on a PC



Connectable Sensors

THERMOVAC
 TTR 211 / TTR 216 S
 TTR 90 / TTR 91 / TTR 91 N
 TTR 96 S / TTR 96 N S
 TTR 100 / TTR 100 S2
 TTR 101 / TTR 101 N / TTR 101 S2 / TTR 101 N 2S
 TTR 911 / TTR 911 N
 TTR 916 / TTR 916 N

CERAVAC
 CTR 90 / CTR 91
 CTR 100 / CTR 100 N
 CTR 101 / CTR 101 N

Linear pressure sensors
 DU 200 / DU 201
 DU 2000 / DU 2001
 DU 2001 rel.

PENNINGVAC
 PTR 90 / PTR 90 N
 PTR 225 / PTR 225 N
 PTR 225 S / PTR 225 N S
 PTR 237 / PTR 237 N

IONIVAC
 ITR 90 / ITR 90 N
 ITR 200 S / ITR 200 N S
 ITR 200 N SL

Other brands
 Active sensors with linear or logarithmic output
