TRIVAC D16T
| Part number: | 31251TE |
| Inlet Flange: | DN25KF for vertical use |
| Operating fluid: | LEYBONOL LVO 100 |
| Pumping speed: | 20.4 m3/h |
| Pumping speed (60 Hz): | 19.0 m3/h |
| Ultimate pressure without gas ballast: | < 5.10-3 mbar |
| Weight: | 37 kg |

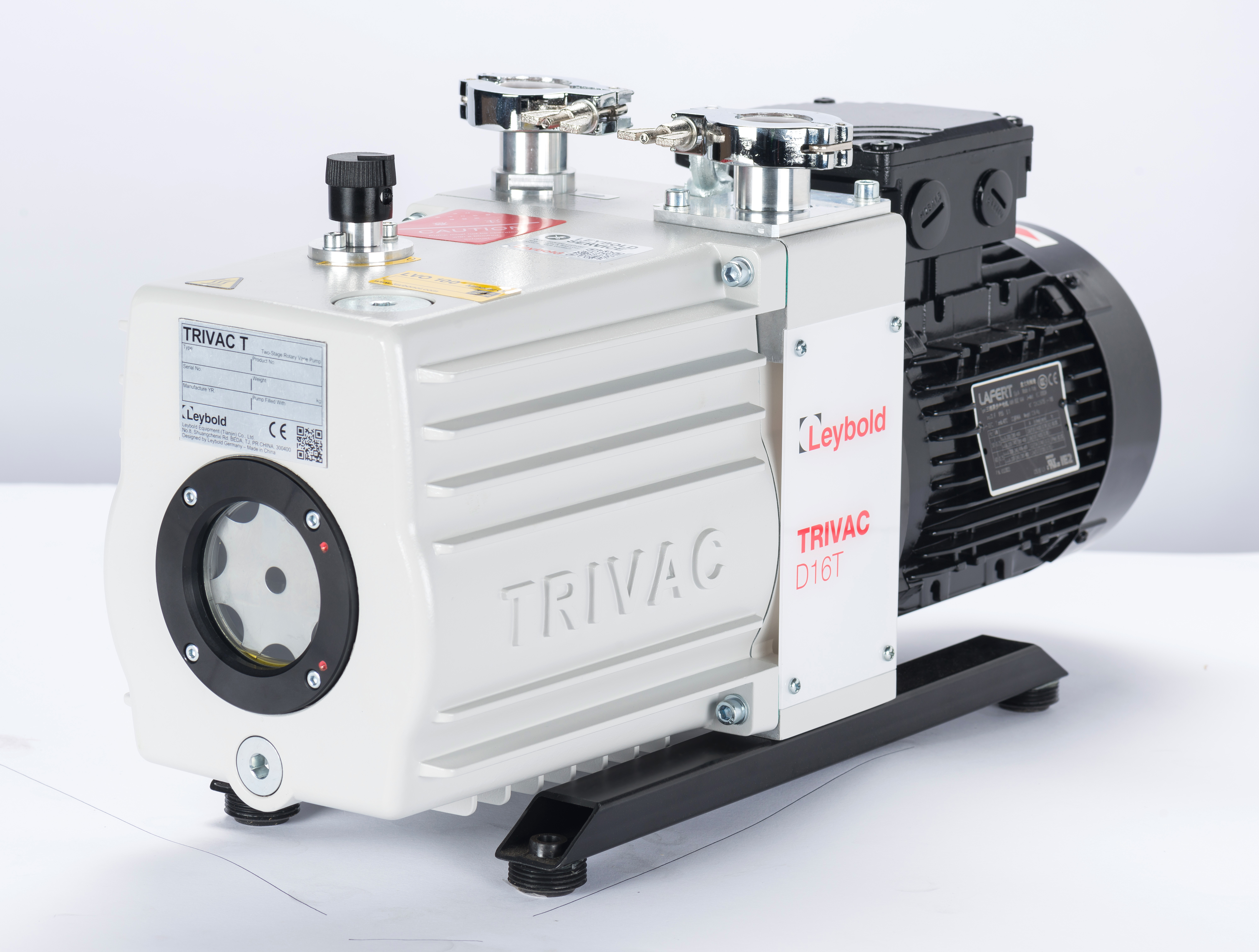

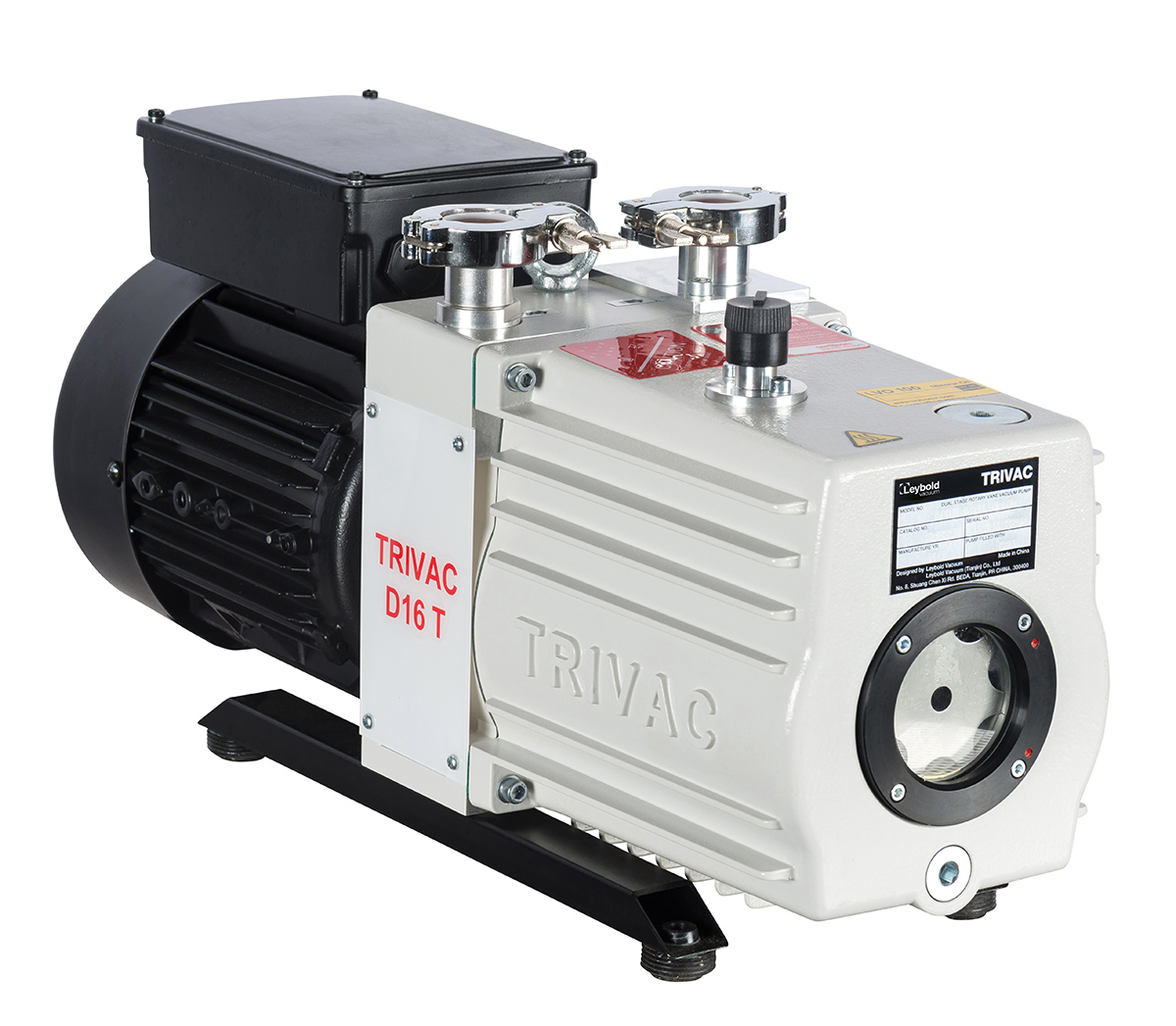

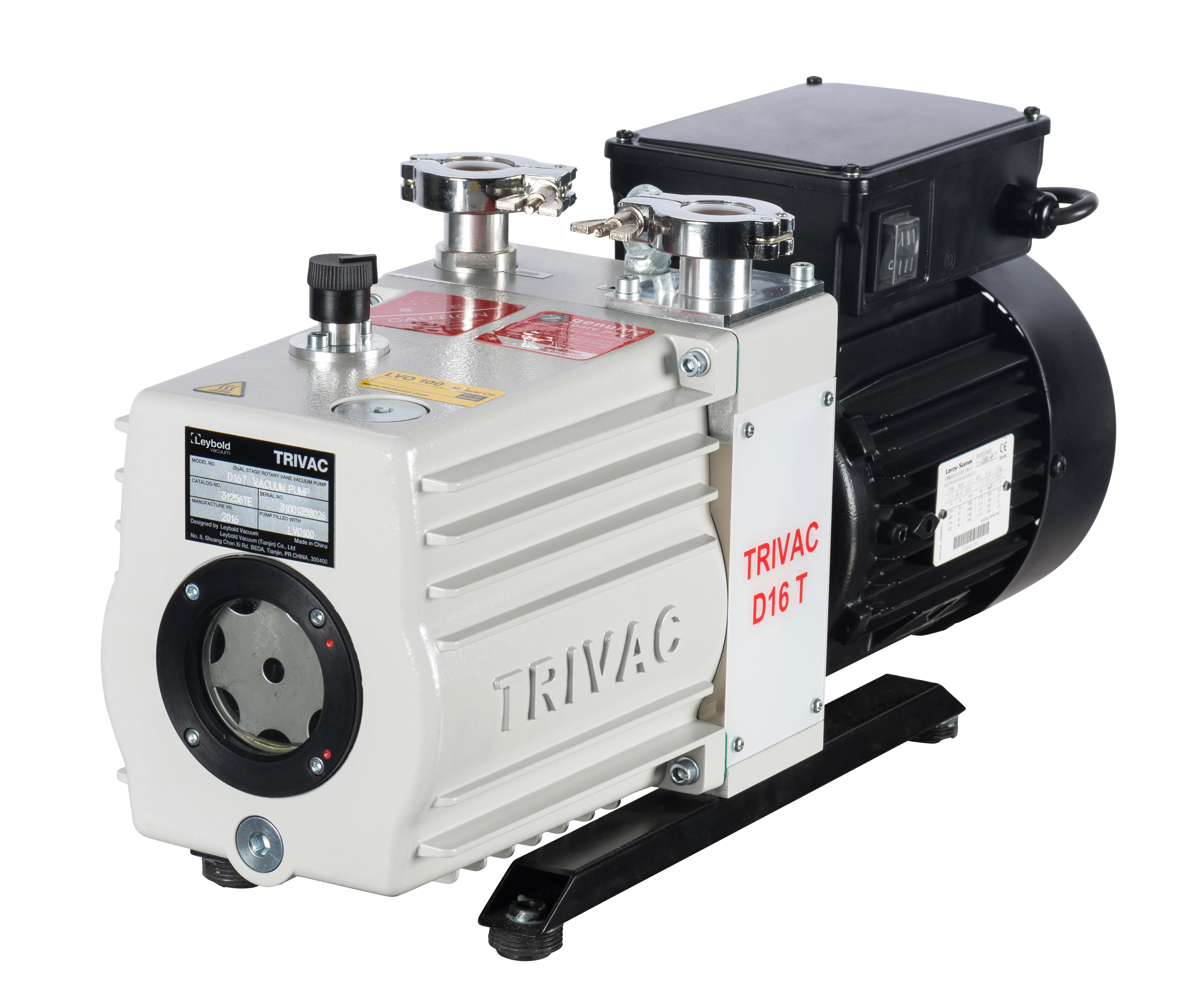

TRIVAC D16T
Two-stage rotary vane pump
Characteristics:
Oil-sealed vacuum pump with integrated oil pump.
The pump is yellow metal free.
The TRIVAC T pump is equipped with a gas ballast and a hydro-pneumatic
intake valve.
The pump must not be operated in explosion hazard areas.
Certifications of the pump: CE
RoHS compliant
