TRIVAC D4T
| Part number: | 31231TE25 |
| Inlet Flange: | DN25KF for vertical use |
| Length: | 480 mm |
| Operating fluid: | LEYBONOL LVO 100 |
| Pumping speed: | 6.4 m3/h |
| Pumping speed (60 Hz): | 5.9 m3/h |
| Ultimate pressure without gas ballast: | < 5.10-3 mbar |
| Weight: | 22 kg |

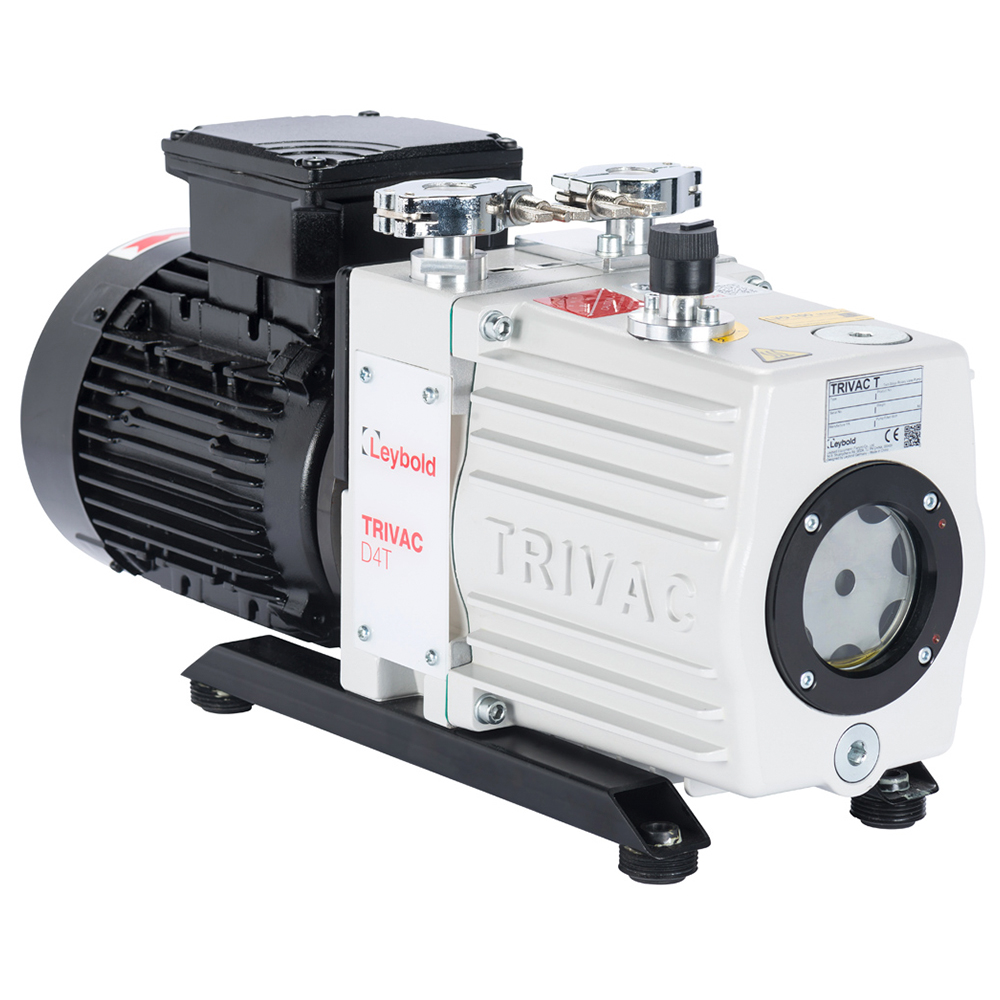

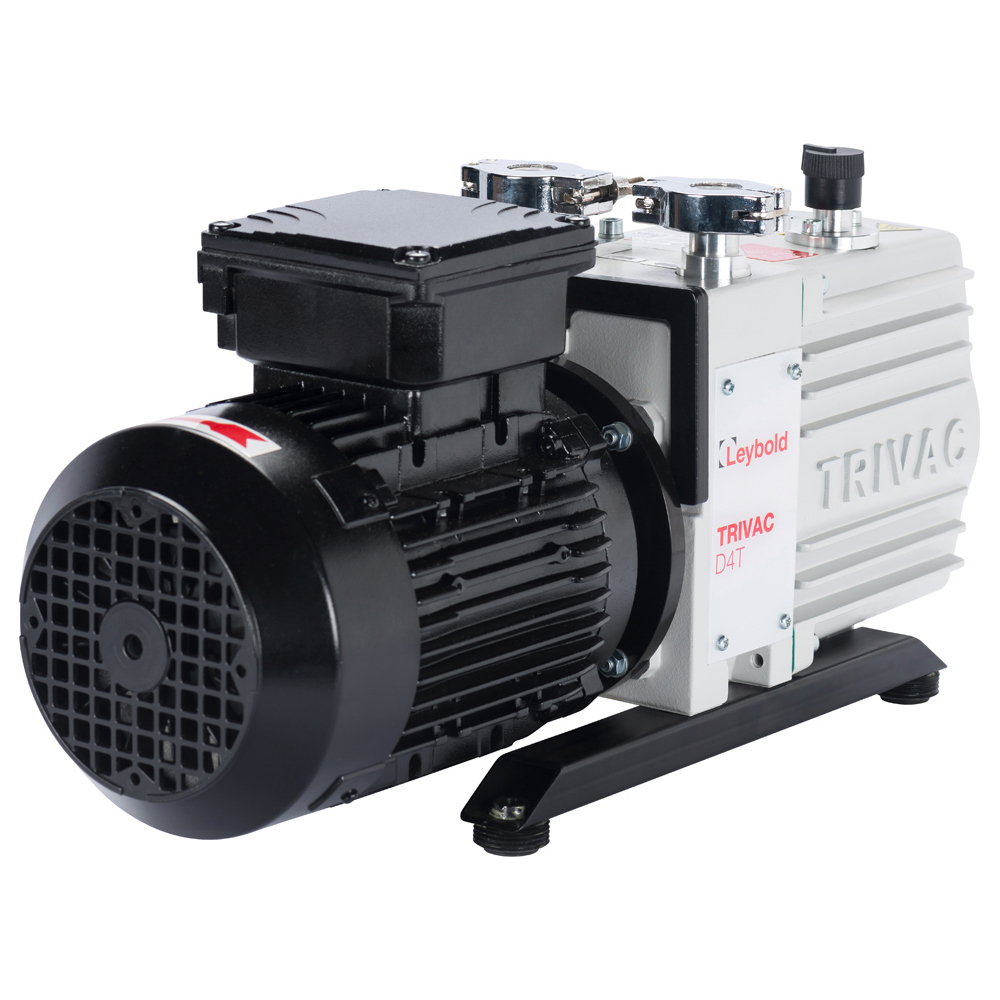

TRIVAC D4T
Two-stage rotary vane pump
Characteristics:
Oil-sealed vacuum pump with integrated oil pump.
The pump is yellow metal free.
The TRIVAC T pump is equipped with a gas ballast and a hydro-pneumatic
intake valve.
The pump must not be operated in explosion hazard areas.
Certifications of the pump: CE
RoHS compliant
|
| Comes with 230 V Schuko Cable (PN 20081091) | Comes with 115 V US Cable (PN 20081090) |
| 31236TE (TRIVAC D 4 T) | X |
|
| 31246TE (TRIVAC D 8 T) | X |
|
| 31236TE25 (TRIVAC D 4 T) |
| X |
| 31246TE25 (TRIVAC D 8 T) |
| X |

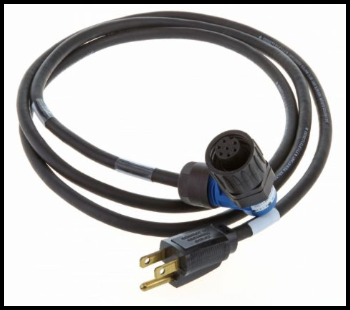

PN 20081090

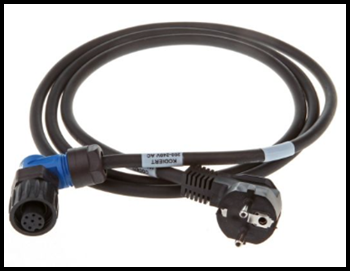

PN 20081091
