DRYVAC DV 800 FP-r
Part number: | 112080FP01-1 |
Connection flange: | DN 100 ISO K |
Exhaust flange: | DN 63 ISO K |
Pumping speed: | 820 m3/h |
Ultimate pressure: | 5 x 10-3 mbar |
Weight: | 600 kg |

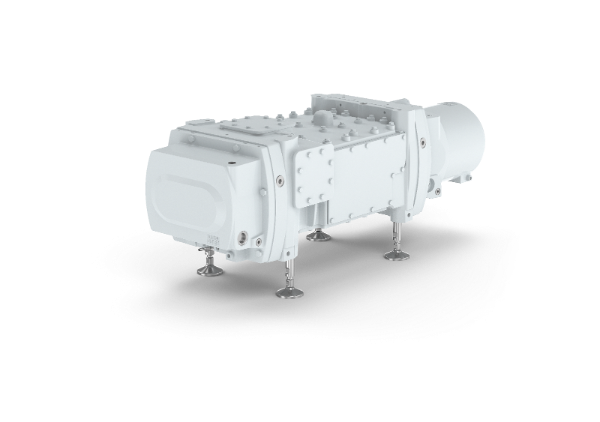

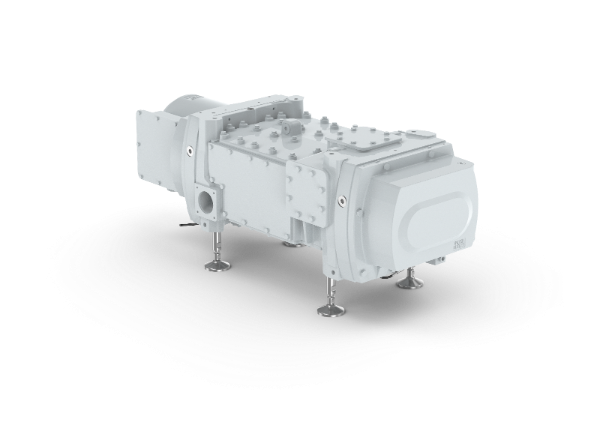

DRYVAC DV 800 FP-r
Washable, hermetically sealed screw vacuum pump
With external frequency converter (FC)
Waterproof epoxy paint
Simple mechanical and electrical integration
Integrated protection function over
Temperature sensors and power consumption
Integration of FC (protection class IP 20) and purge gas valves by the customer
Small space requirement due to compact design
Low energy consumption through optimized
Rotor geometry and innovative motor design
Efficiency class corresponds to IE3
High pumping speed even at high suction pressures
