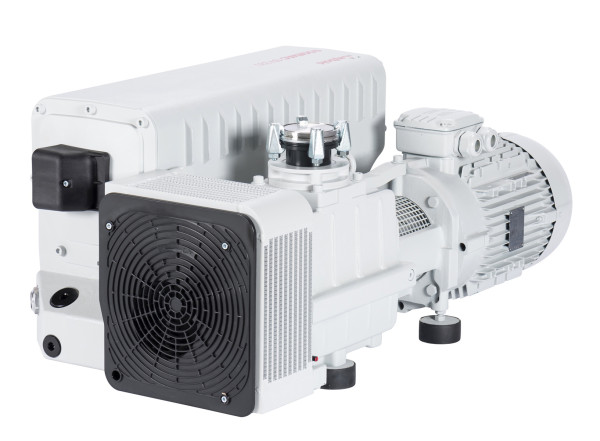

SOGEVAC SV 320 B
| Part number: | 960722V |
| Frequency: | 50 / 60 Hz |
| Inlet connection: | G2" (BSP) |
| Noise level at 50 Hz: | 72 dB(A) |
| Noise level at 60 Hz: | 73 dB(A) |
| Oil volume: | 10 l |
| Outlet connection: | G2" (BSP) |
| Rated pumping speed: | 330 / 385 m3/h |
| Ultimate pressure with gas ballast: | ≤ 0.7 mbar |
| Ultimate pressure without gas ballast: | ≤ 0.08 mbar |
| Water vapor tolerance: | 10 mbar |
| Weight: | 211 kg |

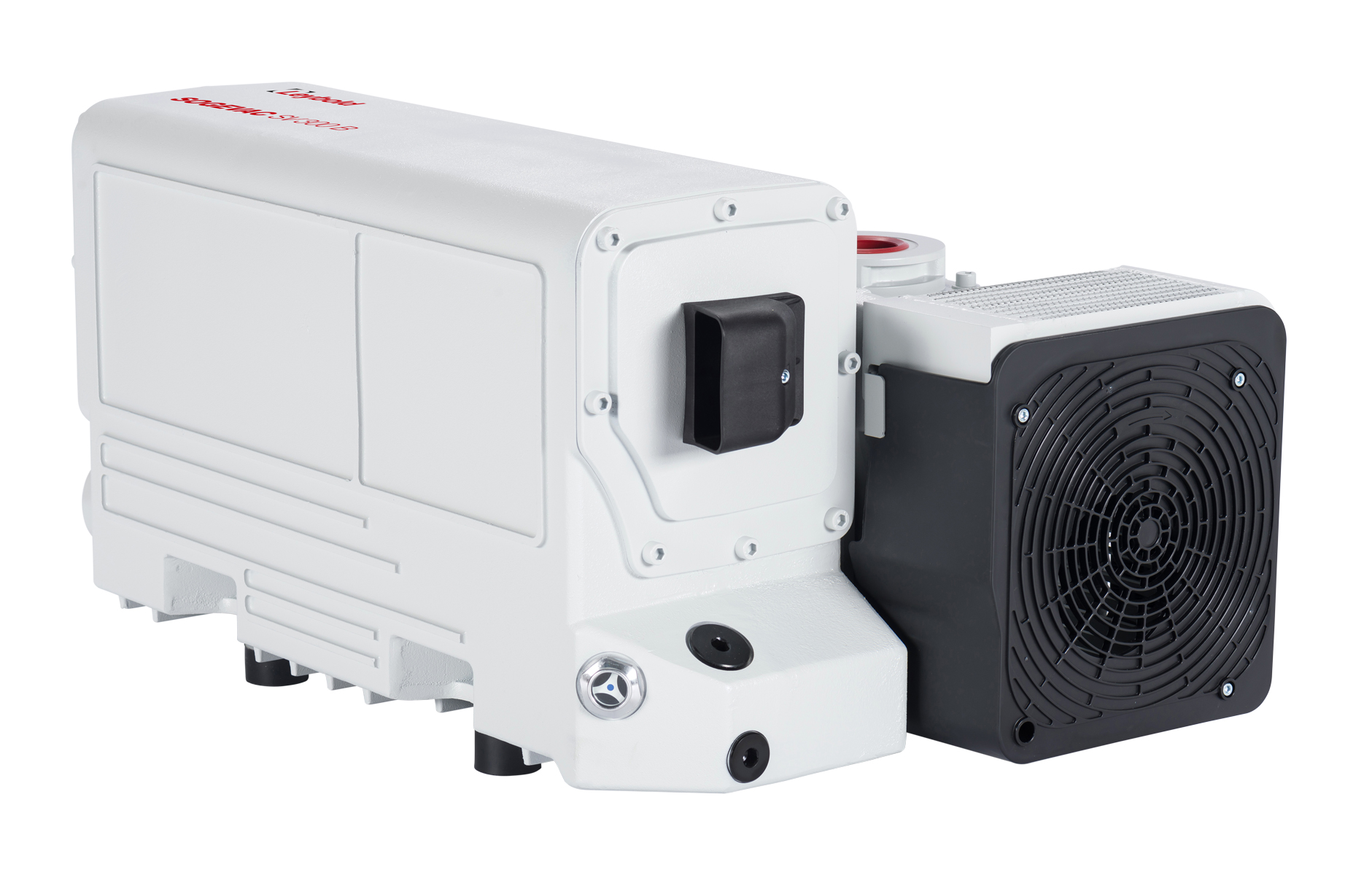

SOGEVAC SV 320 B
Euro / China Motor: 220 - 230 - 240 /380 - 400 - 415 V ± 10%, 50 Hz and 440 - 460V ± 10%, 60 Hz
Wide range Motor: 200 V -15 % … 240 V +10% / 380 … 415 V ±10%, 50 Hz & 200 V -15 % … 230 V +10% / 380 … 400 V ±10% & 460 V ±10%, 60 Hz
