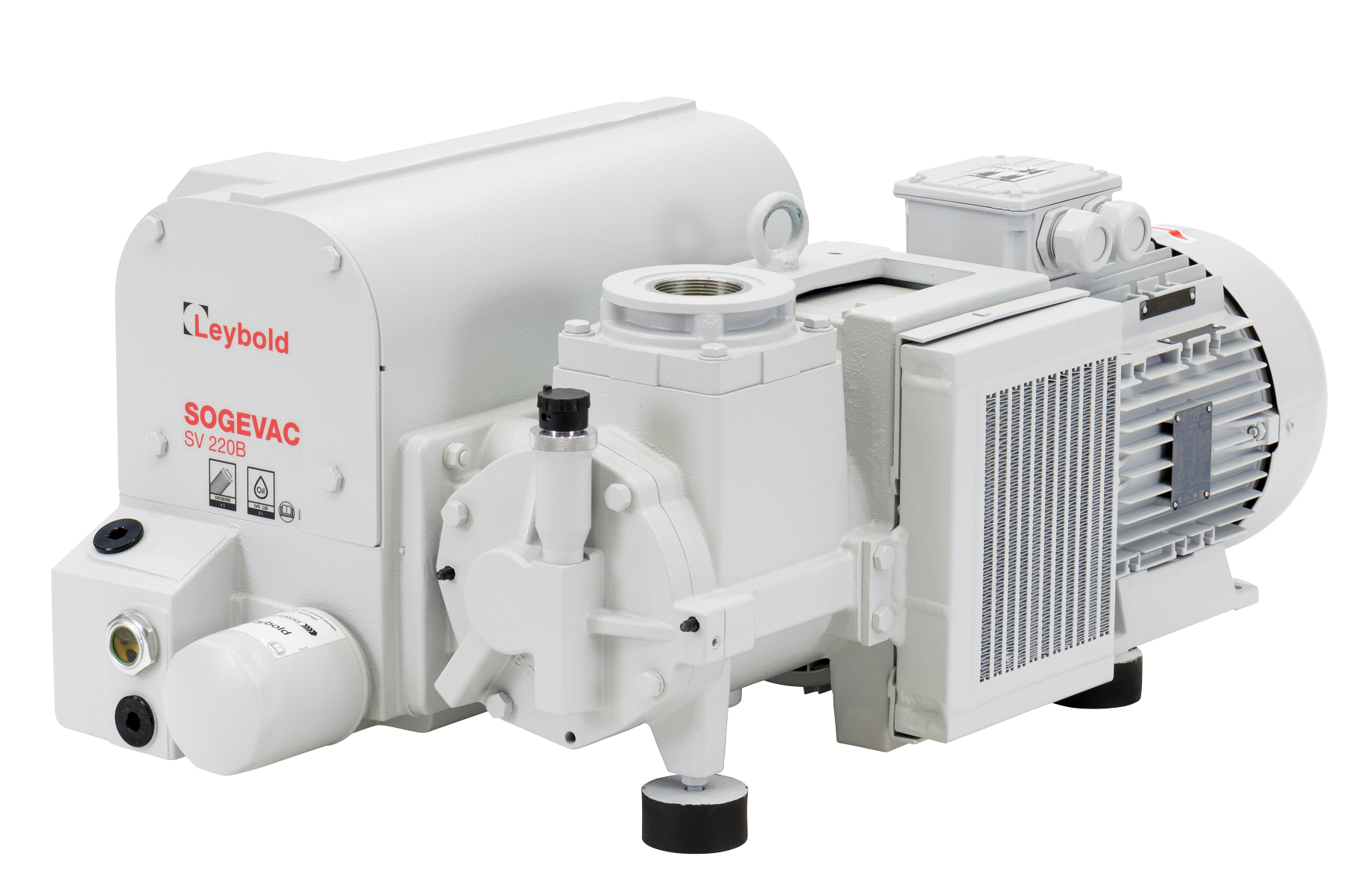

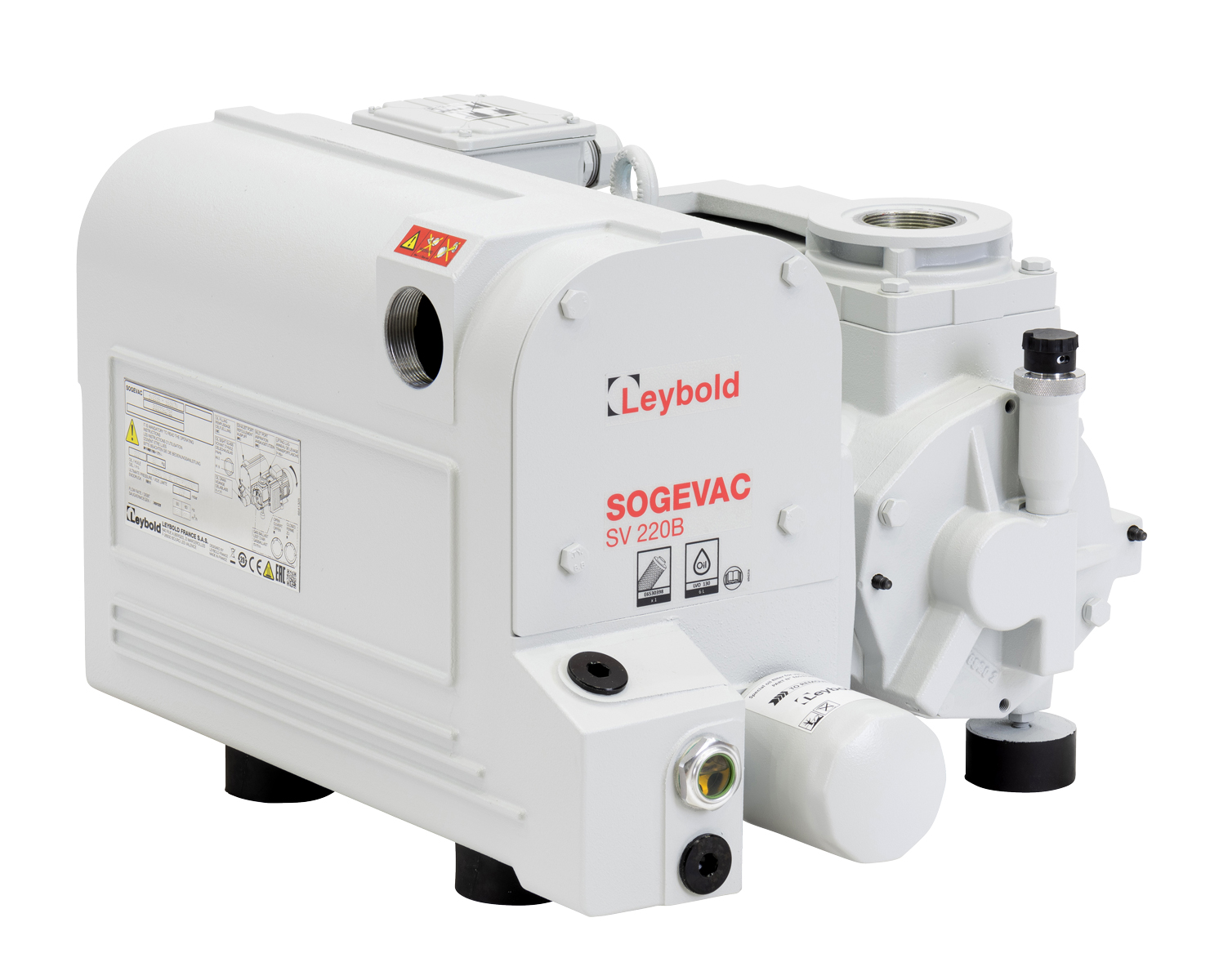

SOGEVAC SV 220 B
| Part number: | 960602V |
| Frequency: | 50 / 60 Hz |
| Inlet connection: | G2" (BSP) |
| Noise level at 50 Hz: | 69 dB(A) |
| Noise level at 60 Hz: | 73 dB(A) |
| Oil volume: | 7.5 l |
| Operating fluid: | LEYBONOL LVO 130 |
| Outlet connection: | G2" (BSP) |
| Rated pumping speed: | 200 / 240 m3/h |
| Ultimate pressure with gas ballast: | ≤ 0.7 mbar |
| Ultimate pressure without gas ballast: | ≤ 0.08 mbar |
| Water vapor tolerance: | 10 mbar |
| Weight: | 180 kg |
SOGEVAC SV 220 B
Euro / China Motor: 220 - 230 - 240 /380 - 400 - 415 V±10%, 50 Hz and 440 - 460V±10%, 60 Hz
Wide range Motor: 200V 220/380V 230/400V 240/415V; 50 Hz and 200V 220/380V 230/400V 440V 460V; 60 Hz
oil-sealed, air-cooled, integrated exhaust filter, anti-suckback valve, with manual gas ballast valve 7 Nm3/h, and oil filter
