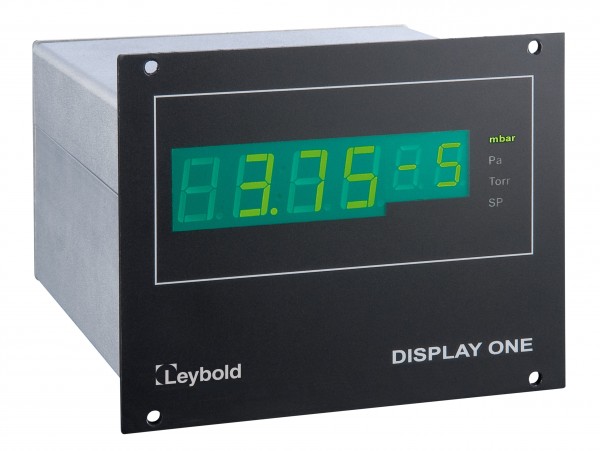

DISPLAY ONE
Número de catálogo: | 230001 |
Conexión a la red: | 100 - 240V AC, 50/60Hz, |
Margen de presión: | 5 x 10-9 mbar - 2000 mbar |
incl. EU/US mains cable |
DISPLAY ONE
Cost-effective, compact single channel display unit for the transmitters from the THERMOVAC series and for PTR 90.
Advantages to the User
■ Power supply voltage for the transmitters
■ Four digit mantissa in the range from 5 x 10-9 to 2000 mbar
■ Readout selectable between mbar, Torr or Pascal
■ 0 to 10 V chart recorder output via plug-in screw terminals
■ The switching threshold of the transmitters has been looped through to plug-in terminals
■ The transmitter switching threshold settings are displayed

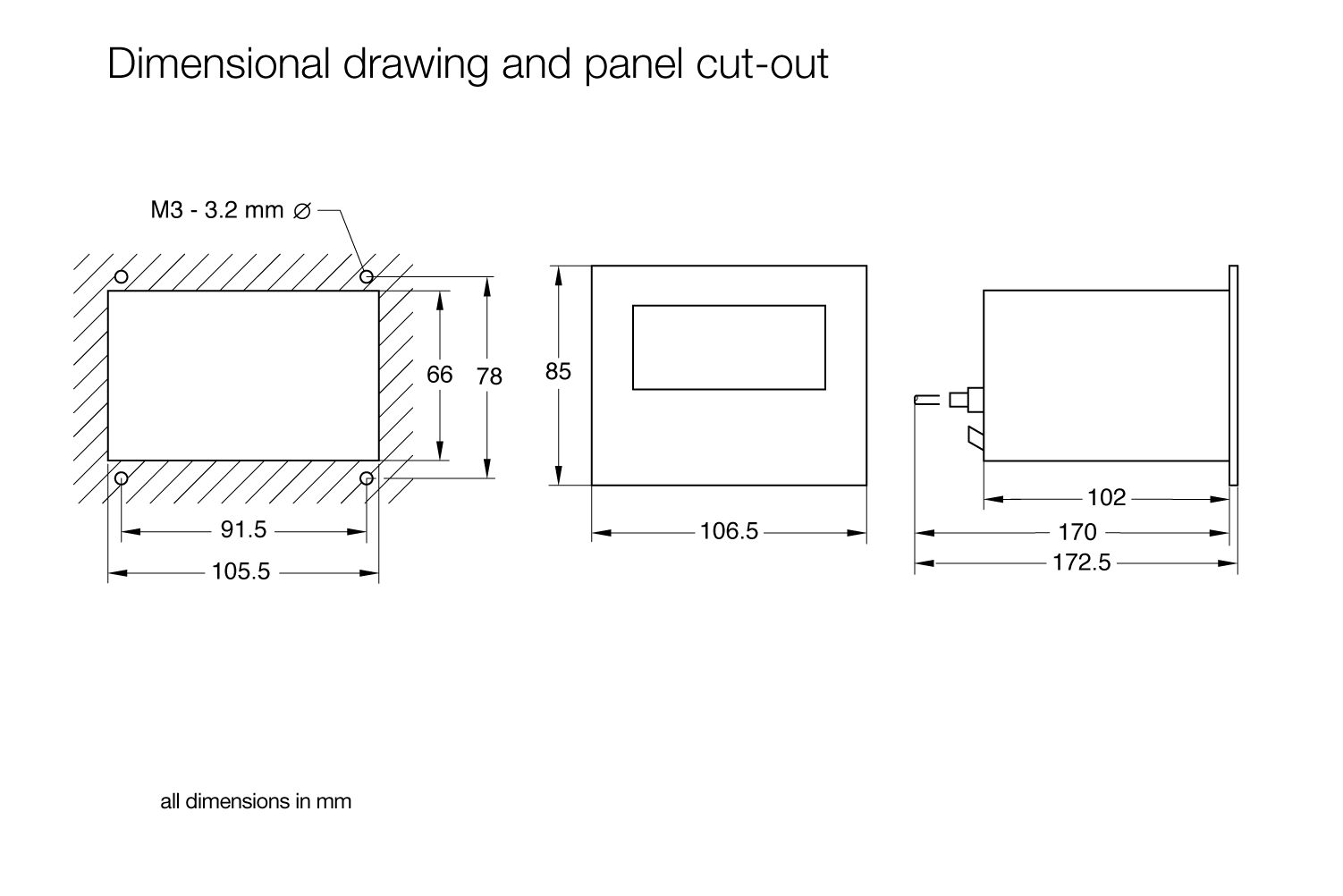

■ Compact bench top enclosure (1/4 19", 2 HU)
■ For fitting into 19", 3 HU racks
■ Supply voltage 100 - 240 V
Connectable Sensors
THERMOVAC
■ TTR 100 *)
■ TTR 101 / TTR 101
■ TTR 101 S / TTR 101 N S
■ TTR 211 *)
■ TTR 216 S *)
■ TTR 90 *)
■ TTR 90 S *)
■ TTR 91 / TTR 91 N
■ TTR 91 S / TTR 91 N S
■ TTR 96 S / TTR 96 N S
■ TTR 911 / TTR 911 N
■ TTR 916 / TTR 916 N
PENNINGVAC
■ PTR 90 / PTR 90 N
Linear pressure sensor
■ DU 200
■ DU 201
■ DU 2000
■ DU 2001
■ DU 2001 rel.
*) Connecting of older sensors possible
