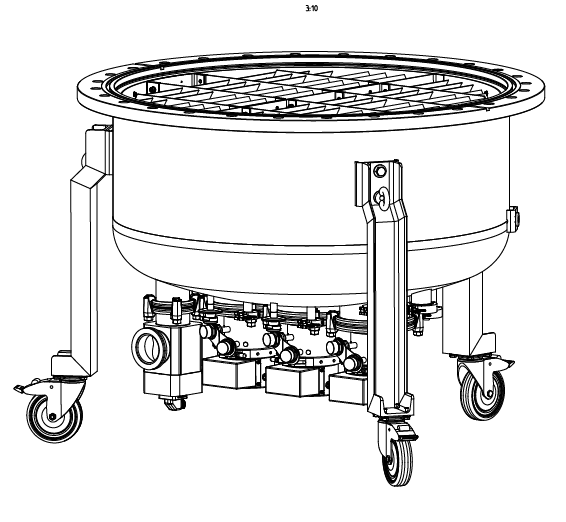

COOLVAC 30000
| Puerto de conexión: | 35" ANSI |
Coloque el producto en el carro para solicitar precio y disponibilidad.
COOLVAC 30000
COOLVAC 30000 iBL – DN 900 ISO-F
Cryogenic Pump without COOLDRIVE i
2 built in cold heads COOLPOWER 5/100i and 1 unit COOLPOWER 140i
High Vacuum flange DN 900 ISO-F - Fore Vacuum flange DN 63 ISO-K
Safety valve at flange DN 40 KF
Further flanges DN 40 KF and DN 16 KF for heaters and feedthroughs
TTR 91 pressure transmitter – DN 63 ISO-K angle valve
Pumping speed N2 30.000 l/s - H2O 93.000 l/s
Capacity N2 6.500 bar*l - H2 100 bar*l
COOLVAC 30000 iSL – 35” ANSI
Cryogenic Pump with automatic control and regeneration
2 built in cold heads COOLPOWER 5/100i and 1 unit COOLPOWER 140i
High Vacuum flange 35” ANSI - Fore Vacuum flange DN 63 ISO-K
Safety valve at flange DN 40 KF
Further flanges DN 40 KF and DN 16 KF for instrumentation, heaters and feedthroughs
TTR 91 pressure transmitter – DN 63 ISO-K angle valve
Pumping speed N2 30.000 l/s - H2O 93.000 l/s
Capacity N2 6.500 bar*l - H2 100 bar*l
COOLVAC 30000 iBL – 35” ANSI
Cryogenic Pump without electronics
2 built in cold heads COOLPOWER 5/100i and 1 unit COOLPOWER 140i
High Vacuum flange 35” ANSI - Fore Vacuum flange DN 63 ISO-K
Safety valve at flange DN 40 KF
Further flanges DN 40 KF and DN 16 KF
Temperature sensor 2nd stage
Pumping speed N2 30.000 l/s - H2O 93.000 l/s
Capacity N2 6.500 bar*l - H2 100 bar*l
COOLVAC 30000 iLN2 – 35” ANSI
Cryogenic Pump with liquid nitrogen cooled shield
Built in cold head COOLPOWER 10 MDi & COOL.DRIVE i control unit
High Vacuum flange 35” ANSI - Fore Vacuum flange DN 63 ISO-K
Safety valve at flange DN 40 KF
Further flanges DN 40 KF and DN 16 KF for temperature monitoring with Si diode and Pt 100
Pumping speed N2 30.000 l/s - H2O 93.000 l/s
Capacity N2 6.500 bar*l - H2 100 bar*
Additional cryogenic pumps with different flange type etc. on request
